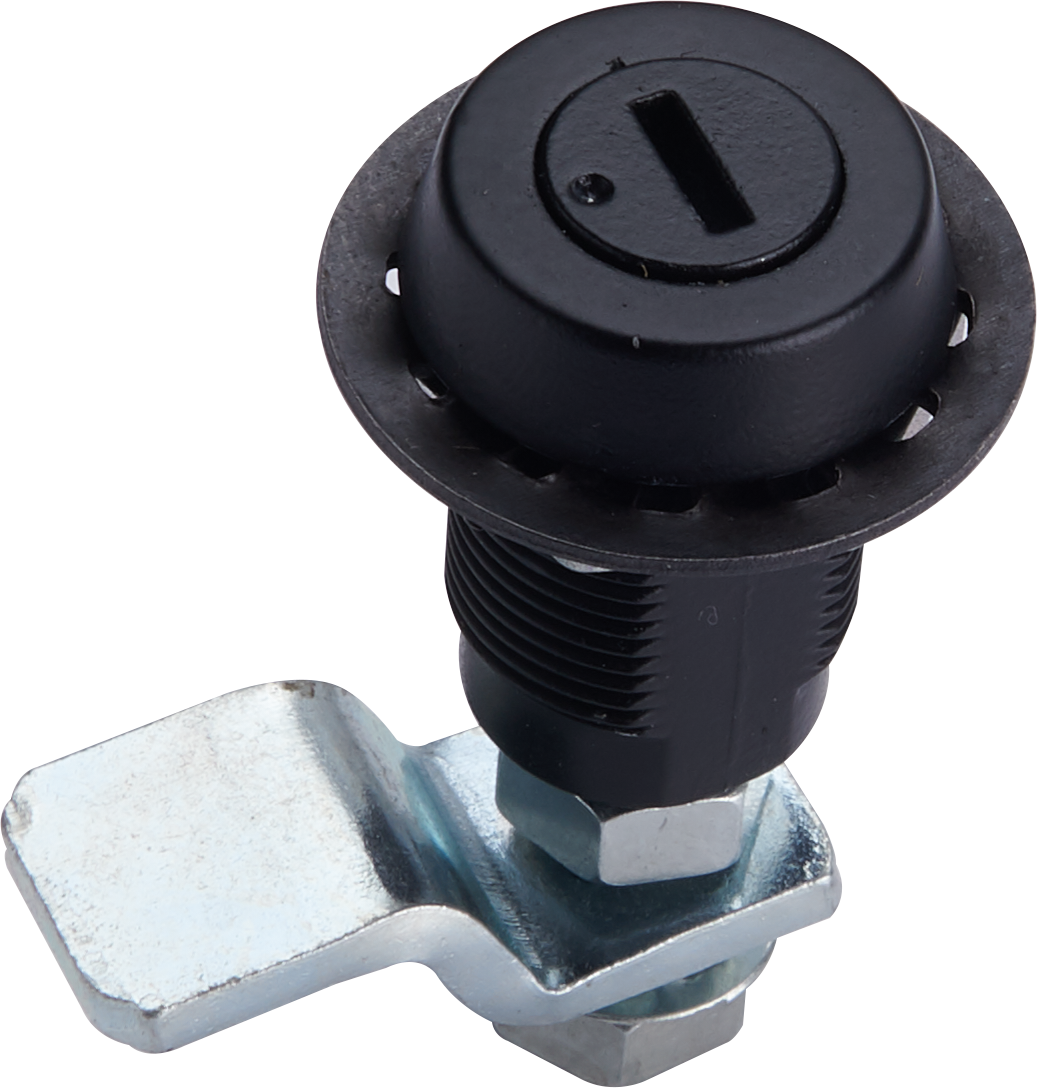

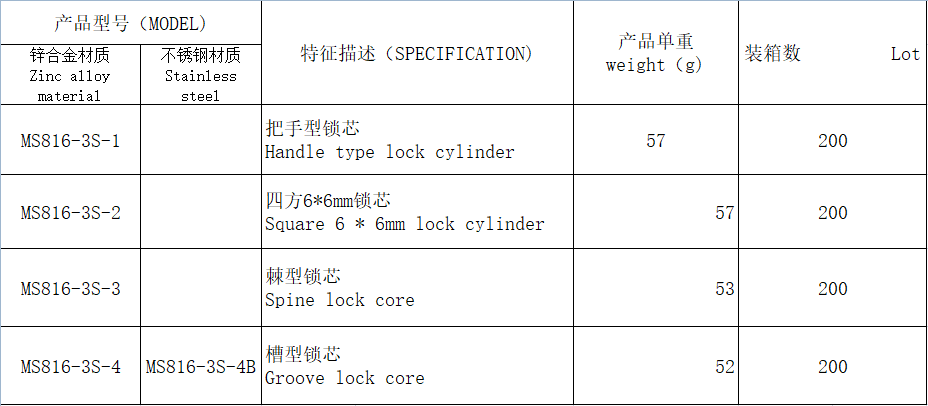

MS816-3S-4

MS816-3S-4
Material: zinc alloy base, lock core, handle, carbon steel bolt, PA waterproof cover
Surface treatment: painted (black) base, lock cylinder, handle, galvanized steel bolt

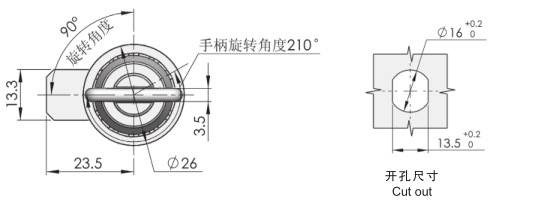

Structure description: the steel bolt can be opened or locked by 90 degree
rotation, with locking function
performance parameter
Maximum static load: 360n
Maximum input torque: 8N. M
Recommended tightening torque of fixing nut: 20n. M
